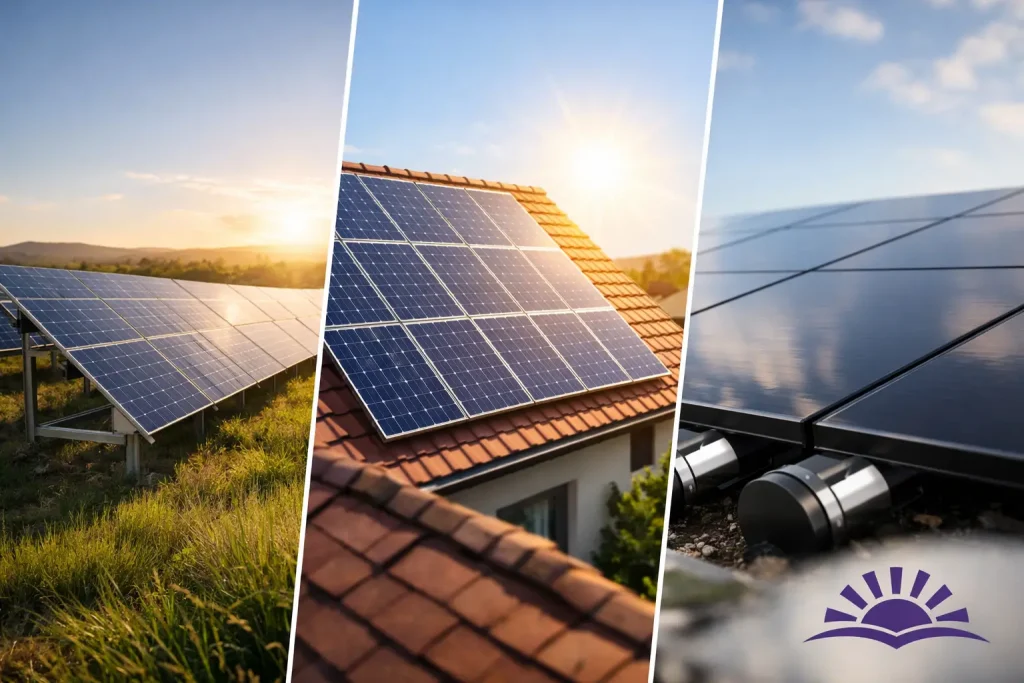

Solar Generation Curves by Installation and Panel
Key takeaways
Solar generation curves for different installation type and panel type are not just engineering charts. They shape system sizing, battery strategy, export behavior, demand charge reduction, and payback. Roof pitch, orientation, shading profile, tracker movement, and module technology all change when power is produced, not just how much. For commercial and industrial projects, the best curve is the one that matches site load and tariff structure as closely as possible.
If your solar plant peaks at noon but your facility load rises later in the afternoon, the system may still generate strong annual yield while underperforming financially. That is why understanding solar generation curves for different installation type and panel type matters at the design stage. The curve tells you how energy arrives across the day, and that is often more useful than a single annual kWh number.
What a solar generation curve actually shows
A generation curve is the power output profile of a solar array over time, usually across a day. On a clear day, the classic shape is a smooth bell curve. Output rises in the morning, peaks around solar noon, and tapers off toward evening.
That simple shape changes quickly once real-world design choices enter the picture. Installation type affects irradiance capture angle, shading exposure, ventilation, and temperature behavior. Panel type affects efficiency, low-light response, degradation pattern, and how output reacts to heat. Two systems with the same DC size can produce very different curves and different economic results.
For business owners and facility managers, this has direct implications. A wider curve with slightly lower peak may be more useful than a sharp noon spike if your site has a long daytime operating window. Likewise, a curve that performs better in cloudy or hot conditions may outperform a higher-rated panel on paper.
Solar generation curves for different installation type
Fixed rooftop systems
Fixed rooftop systems are the most common in commercial buildings and homes. Their curve is heavily influenced by roof pitch, azimuth, local shading, and thermal buildup beneath the modules. A south-facing roof in ideal geometry tends to produce a predictable midday-heavy profile. East- or west-facing roofs flatten and shift the curve.
An east-facing array starts earlier and reaches peak output sooner, which can be valuable for buildings with morning load. A west-facing array pushes more production into late afternoon, often useful for offices, retail, and some industrial operations where cooling and occupancy remain high later in the day. A split east-west rooftop design usually lowers the noon peak but broadens the curve. In many commercial cases, that improves self-consumption.
Flat roofs add another layer of choice because tilt and row spacing can be engineered. A higher tilt can improve seasonal capture but may require wider spacing to limit self-shading. That means fewer modules in the same footprint. There is always a trade-off between module density and per-module performance.
Ground-mounted fixed systems
Ground-mounted systems generally allow better orientation control and easier maintenance access. Their curves are often cleaner because the design can reduce shading and optimize airflow, which helps module temperature stay lower. Lower operating temperature usually means better real-world output.
For large industrial sites, ground mount can also support a more deliberate shaping of the generation curve through orientation and layout. The drawback is land use. If land has operational value, parking expansion potential, or future development plans, a better curve may not justify the opportunity cost.
Carport solar systems
Carport systems combine energy generation with covered parking, but their curves depend on structural orientation and column spacing. The output profile can be strong when designed well, though structural constraints sometimes limit ideal tilt and azimuth. In return, carports can create business value beyond electricity by improving site usability and asset image.
For some commercial properties, that dual-use benefit makes a slightly less optimized curve acceptable.
Single-axis tracker systems
Single-axis trackers change the picture significantly. Instead of one midday-centered bell, they produce a wider, fuller profile because the modules follow the sun through the day. Morning and afternoon output improve, and the peak period extends.
This can be highly effective where electricity value depends on longer daytime coverage rather than a sharp maximum output point. Tracker systems often improve annual yield, but they also add mechanical complexity, maintenance needs, and capital cost. In humid, high-rainfall environments, long-term reliability and O&M discipline matter just as much as modeled gain.
For a commercial buyer, the question is not simply whether trackers generate more. It is whether the broader curve creates enough tariff and consumption benefit to justify the additional system complexity.
Solar generation curves for different panel type
Monocrystalline panels
Monocrystalline modules are widely used because they deliver strong efficiency and make good use of limited roof area. Their generation curves are typically strong and stable, especially in well-designed commercial rooftops where space is constrained.
The key limitation is temperature sensitivity. As module temperature rises, power output drops. In hot climates, the midday section of the curve may be lower than expected from STC ratings. Good mounting design and airflow help, but heat remains a real operational factor.
Polycrystalline panels
Polycrystalline modules are less common in premium commercial projects today, but they still appear in some cost-driven systems. Their curves are usually similar in shape to monocrystalline, though with lower efficiency per square foot. If roof area is abundant, they may still be viable. If space is tight, the lower energy density can reduce project value.
What matters is not only module cost, but revenue or savings per available surface area.
Thin-film panels
Thin-film technologies can behave differently, especially under diffuse light and high-temperature conditions. In some cases, they show a gentler performance drop in heat and relatively better response in cloudy conditions. That can produce a smoother generation profile on overcast days.
However, thin-film generally requires more area for the same capacity. For most urban rooftops, area constraints limit practicality. Where footprint is available and operating conditions are challenging, they may still deserve evaluation.
Bifacial panels
Bifacial modules can add energy yield by capturing reflected light from the rear side. Their curve depends heavily on installation type. On reflective ground-mounted systems or elevated structures with strong rear-side exposure, the curve can be meaningfully lifted across more hours of the day.
On low-clearance rooftops with limited rear irradiance, the bifacial advantage may be modest. This is a good example of why panel type cannot be evaluated in isolation. The same module performs differently depending on mounting geometry and surface reflectivity.
Why the shape of the curve matters more than peak output
Many procurement decisions still focus too heavily on module wattage and estimated annual generation. Those metrics matter, but they do not tell the full commercial story. The value of solar depends on when the energy is produced, how much is self-consumed, whether battery storage can shift excess generation, and how utility tariffs are structured.
A facility with high midday cooling load may benefit from a traditional south-facing curve with a strong noon peak. A logistics or manufacturing site with extended afternoon operations may get better savings from east-west rooftops or tracker-supported profiles that stretch later into the day. A residential customer may prefer a curve that better aligns with household occupancy or EV charging behavior.
This is also where battery energy storage becomes strategic rather than optional. A curve with excess midday production can still be commercially effective if stored and discharged during high-tariff periods. Without storage, that same excess may be exported at lower value or curtailed by site limitations.
Design decisions that change the curve in practice
Even the best module will not deliver the right output profile if system design is weak. Shading from parapet walls, neighboring buildings, water tanks, trees, and rooftop equipment can distort the curve and create multiple local dips. Inverter sizing also matters. If the DC array is oversized relative to inverter capacity, clipping may flatten the midday peak while improving generation in shoulder hours.
That is not always a problem. In fact, clipping can be an acceptable trade-off if it raises annual energy capture and lowers cost per kWh. The right answer depends on load profile, export rules, and financial model.
Monitoring matters after commissioning as well. A modeled curve is only the starting point. Actual operating data can reveal underperformance from soiling, mismatch, thermal stress, or control issues. This is where a technology-led delivery model adds value, because data analytics can translate curve behavior into action rather than just reporting it.
Matching curve design to project goals
The best-performing solar system is not always the one with the highest modeled yield. It is the one that fits the building, the load, the tariff, and the capital plan. A warehouse, office tower, factory, and private home can all require different curve shapes to achieve the best financial outcome.
For decision-makers, the practical question is simple: do you want the system to maximize annual generation, reduce daytime grid imports, lower demand charges, support storage optimization, or improve resilience? The answer determines which installation type and panel type make sense.
That is why serious solar design should combine engineering, monitoring, and financial modeling in one process. Amsolar approaches projects this way because generation curves are not just technical outputs. They are operating-cost curves in disguise.
The right solar curve does not start with the panel catalog. It starts with how your site uses energy, and what you need that energy to achieve.
